Stirrers and shakers · Homogenizers

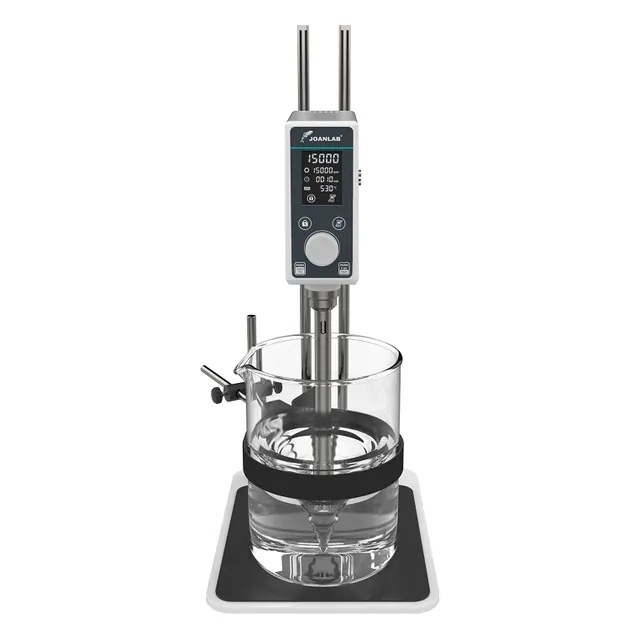

JOANLAB laboratory homogenizer · HZ-400 and HZ-500Max
Benchtop homogenizers with a quick-connect head and brushless motor; the HZ-500Max adds tilt detection and one-button locking.
- Capacity from 250 mL to 5 L depending on the head
- Speed from 3000 to 15,000 rpm, in 500 rpm steps
- Quick-connect blades
- Tilt detection and one-button locking on the HZ-500 series
Configurations, certifications, power supply, accessories and availability are confirmed in the quote.
Specifications
Summary datasheet
| Speed | 3000-15,000 rpm, in 500 rpm steps |
| HZ-400 heads | HZ-401 Ø12 mm (250 mL), HZ-402 Ø14 mm (500 mL) standard, HZ-403 Ø16 mm (1000 mL) |
| HZ-500Max heads | HZ-501 Ø18 mm (2 L), HZ-502 Ø22 mm (3 L) standard, HZ-503 Ø25 mm (5 L) |
| Maximum viscosity | 3000 to 8000 mPa·s (HZ-400); 5000 to 10,000 mPa·s (HZ-500Max) |
| Immersion depth | 40-190 mm (HZ-400) |
| Thermal protection | Ambient +5 up to 100 °C (HZ-500Max) |
| Timer | 0 to 24 h |
| Power | 90 W (HZ-400) and 300 W (HZ-500Max) |
| Availability | Imported to order / to be confirmed |
400 for milliliters, 500Max for liters
Both turn from 3000 to 15,000 rpm in steps of 500. The HZ-400 (90 W) carries heads from 250 mL to 1 L, with a stated immersion of 40 to 190 mm and a 24 hour timer; the HZ-500Max (300 W) covers 2 to 5 L, with a temperature display and under 60 dB stated, on a double pole.
What each one ships with
The 400 includes the Ø14 head for 500 mL (Ø12 and Ø16 optional); the 500Max, the Ø22 for 3 L (Ø18 and Ø25 optional). Between these and the floor-standing HZ-300, the choice is working volume.
