JOANLAB heating modules · HS5xx series

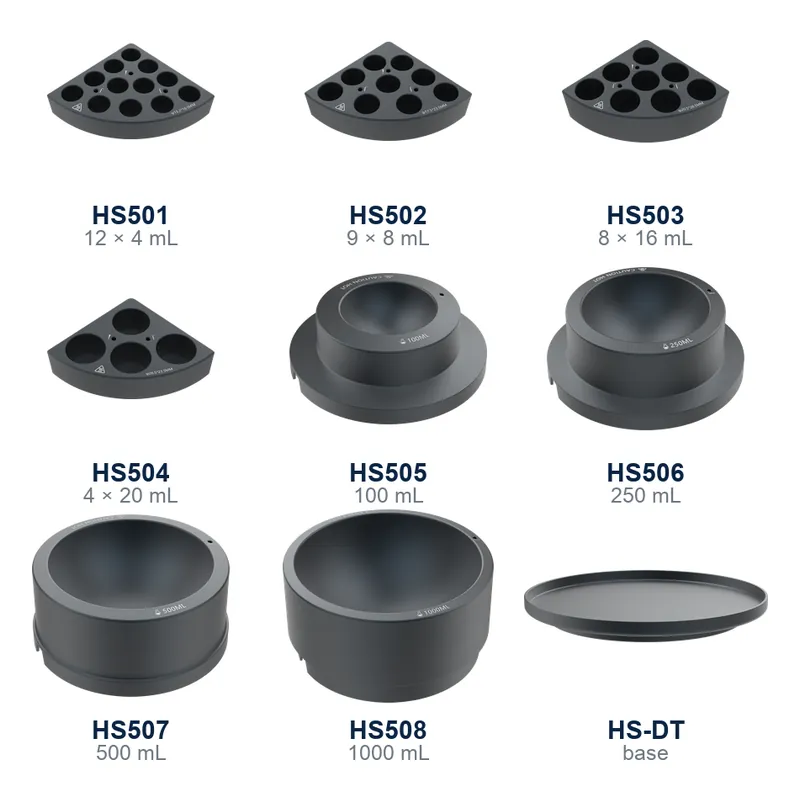

HS501 · 12 vials × 4 mLHS502 · 9 vials × 8 mLHS503 · 8 vials × 16 mLHS504 · 4 vials × 20 mLHS505 · flask 100 mLHS506 · flask 250 mLHS507 · flask 500 mLHS508 · flask 1000 mLHS-DT · mounting base · Ø175 mm
Alloy blocks for vials and round-bottom flasks that sit on the 135 mm hot plate to run several samples at once. The vial modules mount on the HS-DT base.
- Four modules for vials, from 4 to 20 mL, mounting on the HS-DT base
- Four modules for round-bottom flasks, from 100 to 1000 mL
- Vial-module wells from 15.2 to 28.5 mm in diameter
- Compatible with hot plates 135 mm in diameter
Configurations, certifications, power supply, accessories and availability are confirmed in the quote.
Specifications
Summary datasheet

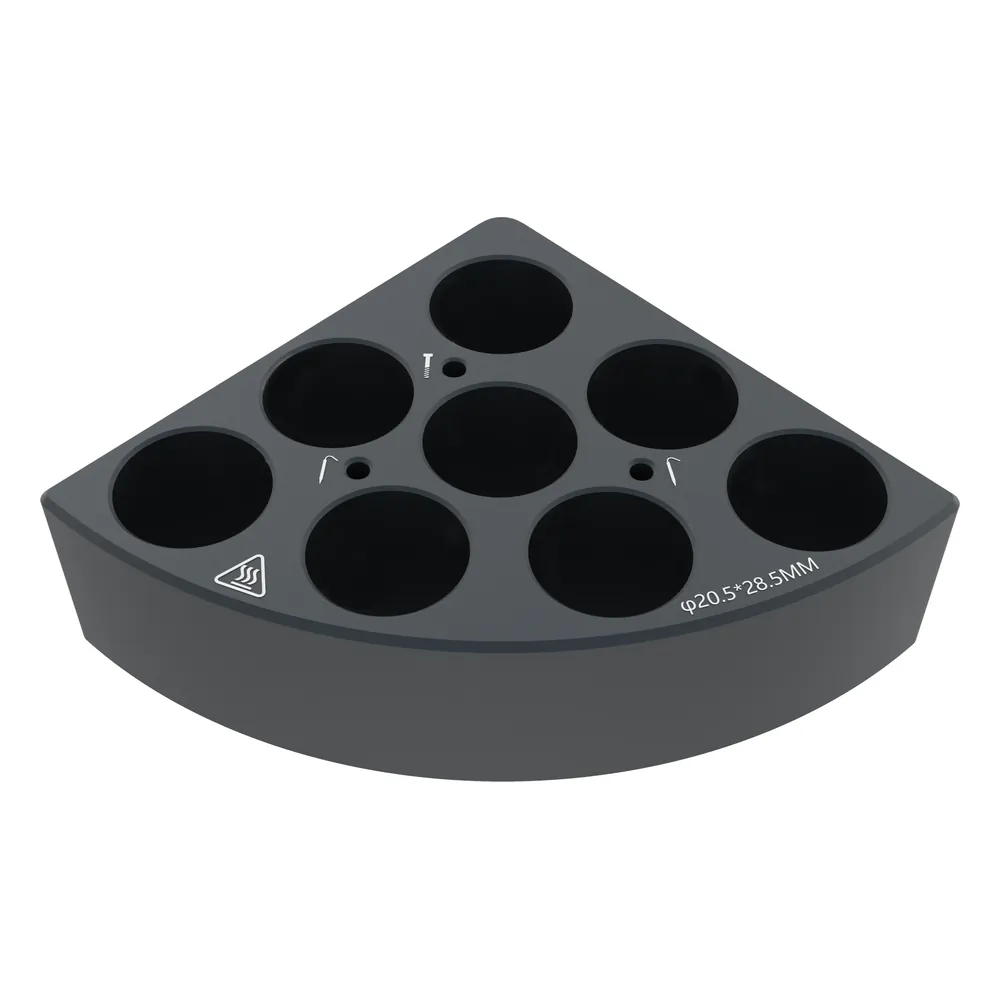

| Vial modules | HS501 (12 × 4 mL), HS502 (9 × 8 mL), HS503 (8 × 16 mL), HS504 (4 × 20 mL) |
| Well diameter | 15.2, 17.5, 20.5 and 28.5 mm depending on the module |

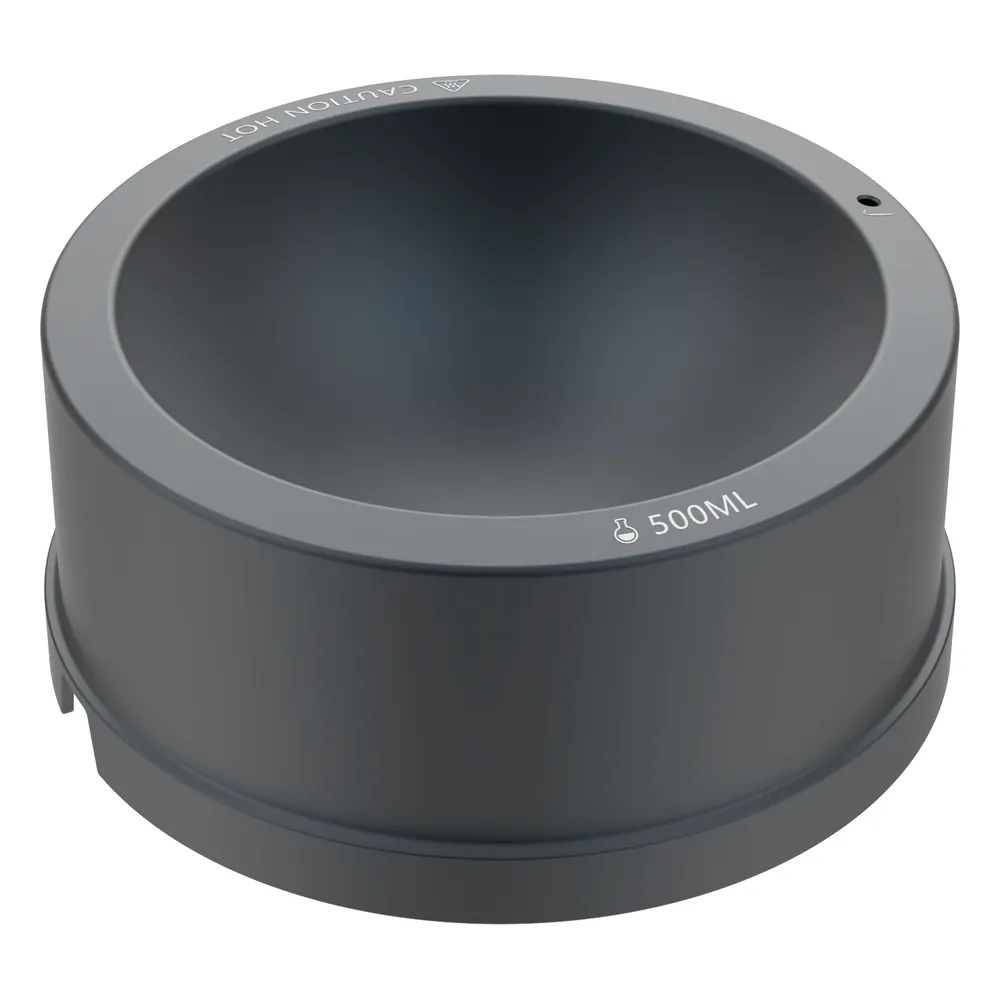

| Flask modules | HS505 (100 mL), HS506 (250 mL), HS507 (500 mL), HS508 (1000 mL) |
| Outside diameter | Flask modules: 142 mm (HS505 to HS507) and 152 mm (HS508). Vial modules: the manufacturer lists 85 mm; they are quarter discs and, per the manufacturer's drawing, the figure is the radius of the disc that the four form together on the HS-DT base |
| Compatibility | HS-5, HS-5C, HS-5Pro, HS-5Max, HHMS-4Max and HHMS-6Max; in general, a hot plate 135 mm in diameter |
| Stir bar | Selected separately according to the vial used |
| Base | HS-DT: mounting base on the plate for the HS501 to HS504 vial racks. 175 mm outside diameter, 18 mm high |
| Availability | Imported to order / to be confirmed |
Blocks for tubes and vessels
The HS-501 to 504 are tube blocks: from 12 positions of 4 mL to 4 of 20 mL, with diameters and depths stated per model, and they assemble on the HS-DT base. The HS-505 to 508 take vessels from 100 to 1000 mL.
Where they fit

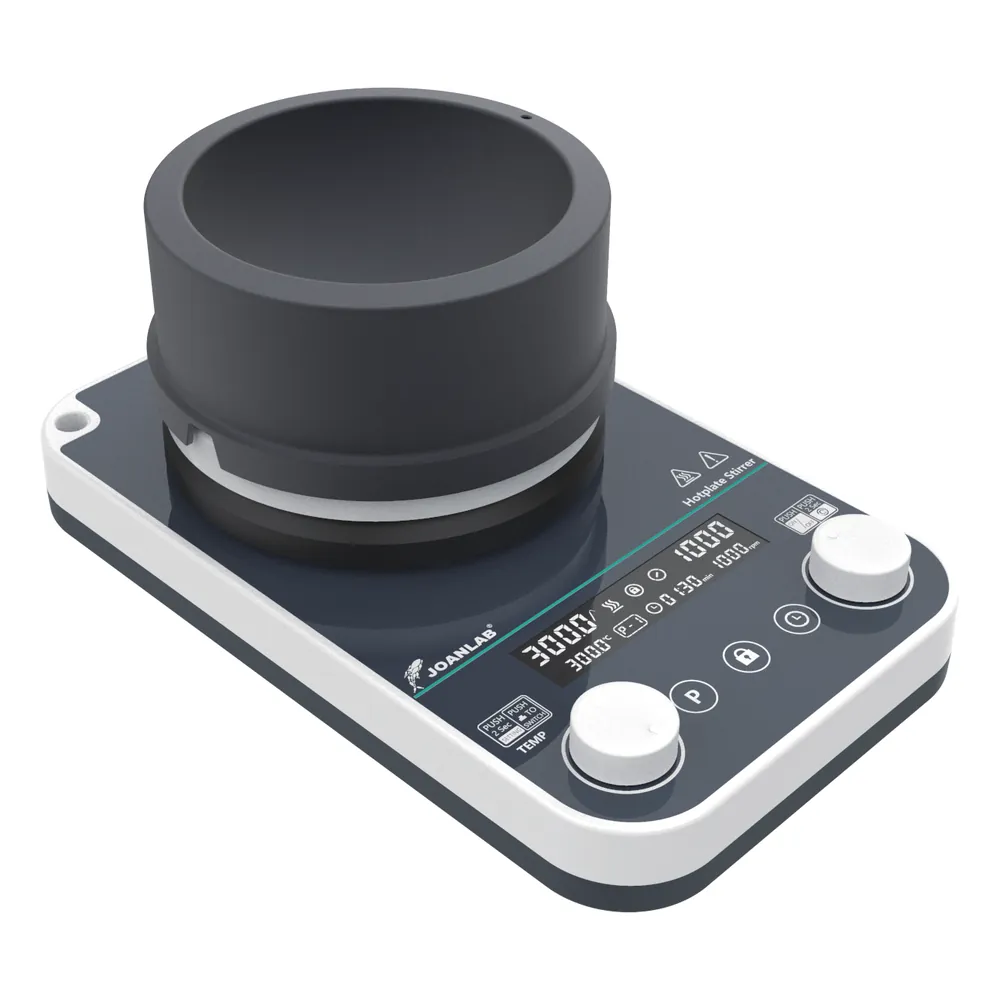

The catalog declares them adaptable to the HS-5, 5C, 5Pro and 5Max and to the HHMS-4Max and 6Max multi-position units — that is, the round Ø135-plate machines.
