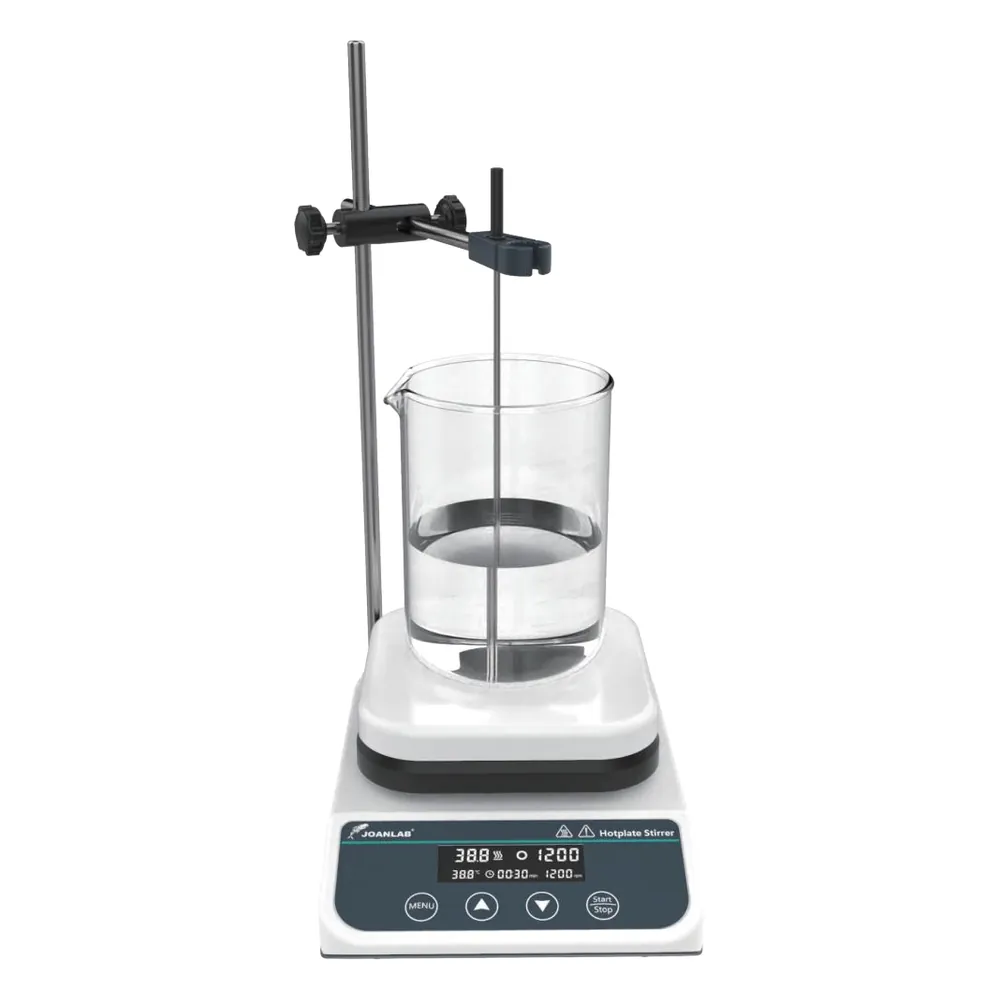

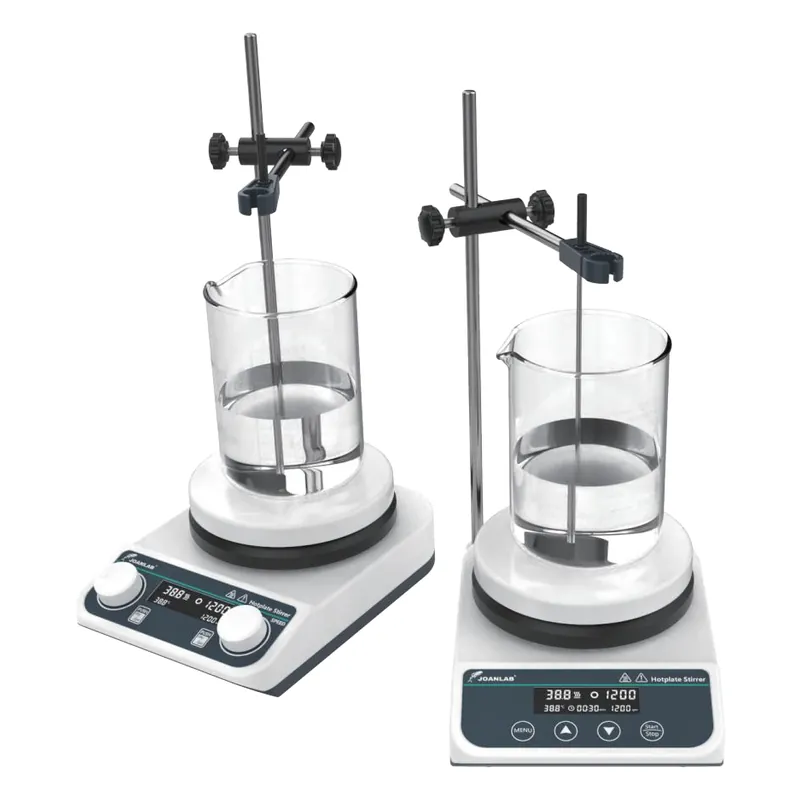

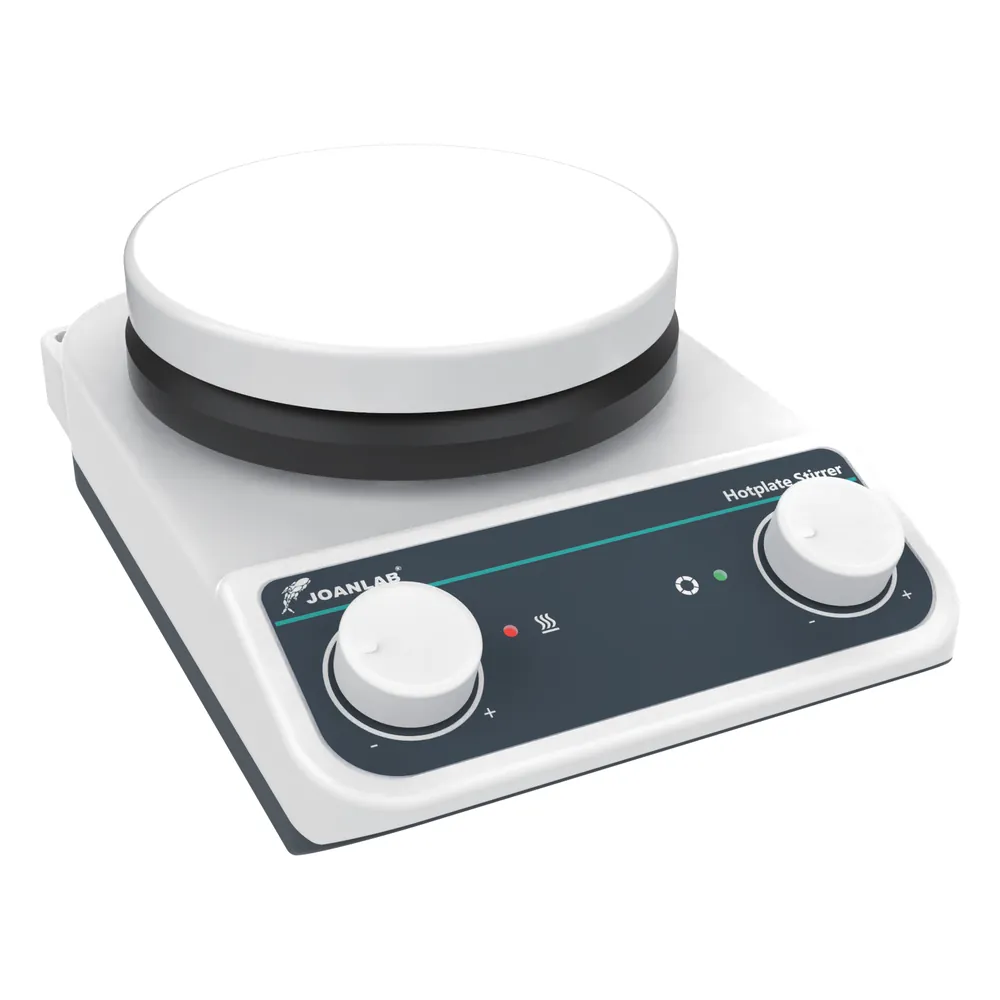

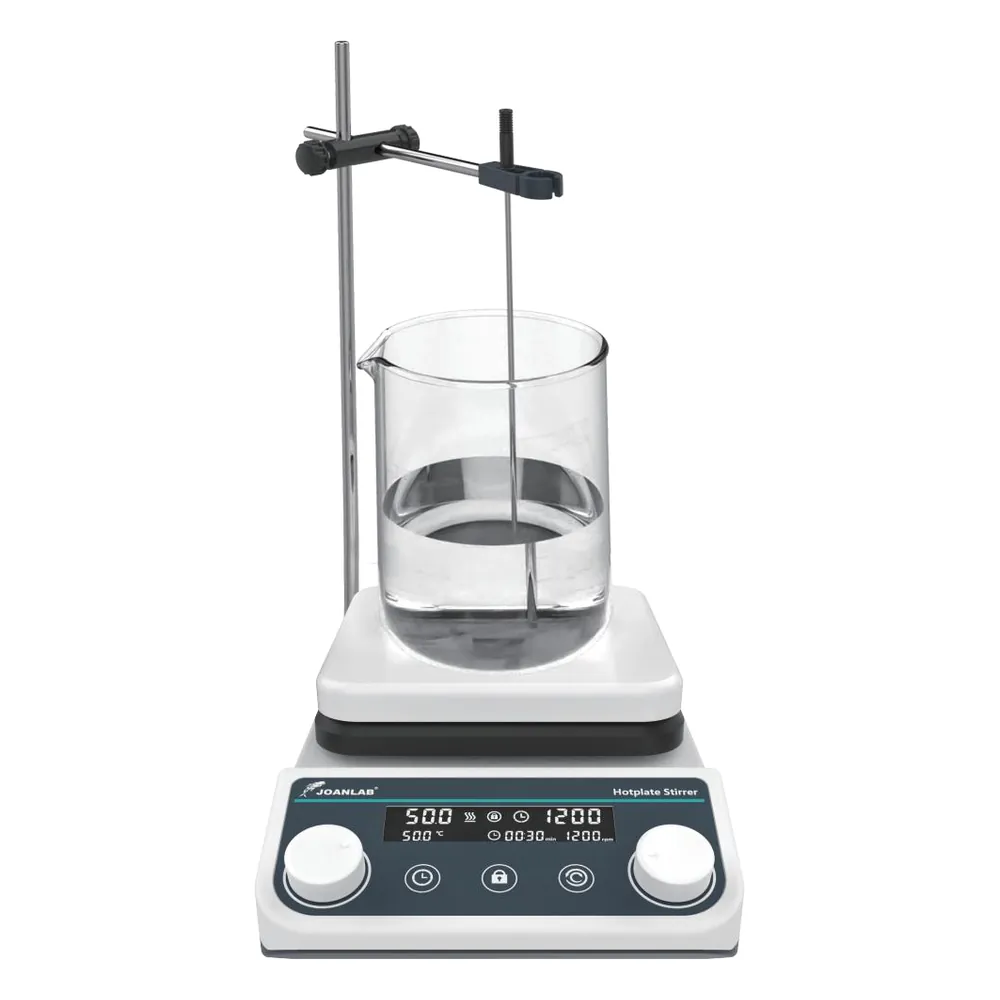

JOANLAB heating magnetic stirrer · HS-5/6/8 series — 2-20 L, 50-1500 rpmTwo units in use, each with a beaker and a rod stand with a clampSquare-plate unit with a beaker held on a rod standUnit with a button panel and display, with a beaker mounted on the standUnit on its own, with the round plate empty and the two knobs for temperature and speed
Stirrers and shakers · Heating magnetic stirrers

JOANLAB heating magnetic stirrer · HS-5/6/8 series

Range of hotplate stirrers for 2 to 20 L, with a PT1000 probe depending on the version and, on the C and Pro versions of the 5 and 6 series, ±1 °C liquid temperature control; the HS-550Pro reaches 550 °C at the plate.

  • Volumes of 2, 5 and 20 L depending on the model
  • Plate up to 260, 280, 310 or 550 °C depending on the version
  • PT1000 probe depending on the version; stated precision of ±1 °C in liquid on the C and Pro versions of the 5 and 6 series
  • Versions with a knob (base), a digital display (C) and a timer (Pro, except the HS-550Pro)
Configurations, certifications, power supply, accessories and availability are confirmed in the quote.
The equipment in operation

Manufacturer video

It compares the four configurations of the family with the maximum plate temperature of each one and then moves on to the unit in use: fitting the support rod into the hole in the chassis, connecting the temperature probe and setting temperature and speed —by knob on the HS-5C, by buttons on the HS-5Pro—. It is the quickest way to see what separates one model from the next.

Original material from JOANLAB, with no audio and with on-screen text in English.

Specifications

Summary datasheet

Maximum volume2 L (HS-5 and HS-6 series), 5 L (HS-8 series), 20 L (HS-550Pro), in water
Speed200-1500 rpm on the base and C versions, except the HS-8C; 50-1500 rpm on the Pro versions (except the HS-550Pro) and the HS-8C; 100-1500 rpm on the HS-550Pro
Stir bar30 mm on the HS-5 series, according to the manufacturer's manual
Maximum plate temperature260 °C (HS-5 and HS-6), 280 °C (HS-5C, HS-6C and HS-8), 310 °C (Pro, except the HS-550Pro, and HS-8C), 550 °C (HS-550Pro)
Top plateØ135 mm and 135 × 135 mm on the 5 and 6 series; 160 × 160 mm on the 8 series; 184 × 184 mm on the HS-550Pro
Temperature precision±1 °C in liquid and ±3 °C at the plate (C and Pro versions of the 5 and 6 series)
ProbeInternal PT1000 and external PT1000 depending on the version
Timer1 min to 12 h on the Pro versions; the HS-550Pro has no timer, according to the manufacturer
PowerFrom 200 W (HS-5) to 1050 W (HS-550Pro)
Dimensions225 × 155 × 90 mm on the HS-5 and HS-6 series; 285 × 180 × 90 mm on the HS-8 series
Power supplyAC 110/220 V (HS-5 series) and 200-240 V, 50/60 Hz (HS-550Pro), according to the manufacturer; AC 220 V on the HS-6 and HS-8 series
AvailabilityImport to order / to be confirmed

Three sizes by three tiers

The 5 carries a round Ø135 mm plate (2 L); the 6, a square 135 × 135 (2 L); the 8, a square 160 × 160 at 5 L. Each size comes in three tiers: base with a knob, C with a display, and Pro adding a 1 minute to 12 hour timer.

The plate ceiling rises with the letter

The base units state 260 °C of plate (280 on the 8); the C, 280 to 310; the Pro, 310 (except the HS-550Pro). C and Pro on the 5 and 6 series add stated accuracy of ±1 °C in liquid and ±3 °C at the plate, and power runs from 200 to 500 W on the 5, 6 and 8 series.

The plate material changes too

The base HS-5 carries a ceramic-coated stainless steel plate; the rest of the 5, 6 and 8 series, ceramic-coated aluminum alloy.
