Stirrers and shakers · Homogenizers

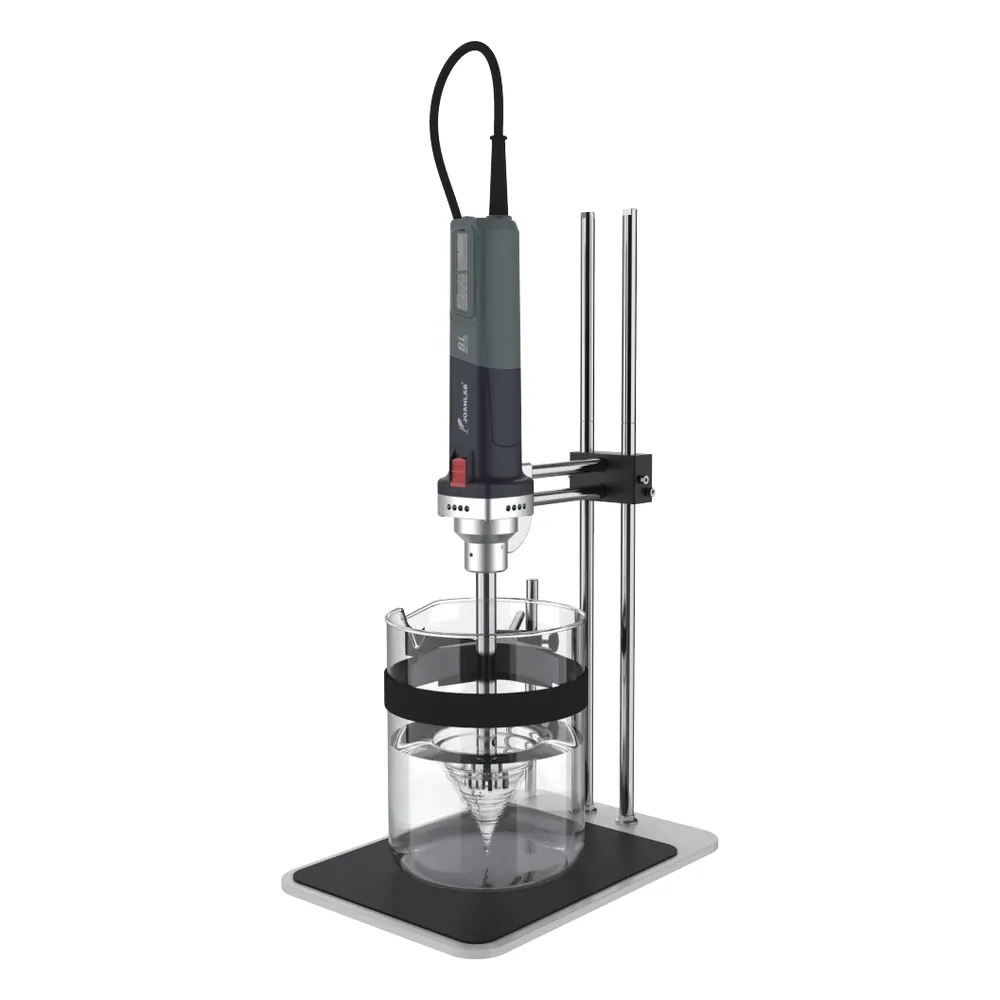

JOANLAB laboratory homogenizer · HZ-300
Benchtop homogenizer of 1300 W and up to 30,000 rpm, with three interchangeable heads and continuous speed control.
- Maximum speed of 30,000 rpm
- Standard Ø25 × 225 mm head; optional Ø18 and Ø36 mm
- Continuous control with six levels
- Design with wind guard and dissipation openings
Configurations, certifications, power supply, accessories and availability are confirmed in the quote.
Specifications
Summary datasheet
| Maximum speed | 30,000 rpm |
| Regulation | Continuous, with six levels |
| Head | Ø25 × 225 mm standard; Ø18 and Ø36 × 225 mm optional |
| Immersion depth | 150 mm |
| Head material | 316 stainless steel; blades in 304 |
| Power | 1300 W |
| Power supply | AC 220 V, 50 Hz |
| Dimensions | 350 × 250 × 650 mm |
| Shipping package | 42 × 30 × 17 cm and 11 kg |
| Availability | Import to order / to be confirmed |
The floor unit: up to 10 liters
At 1300 W and a 30,000 rpm ceiling, it is the house's large homogenizer. The standard Ø25 mm head covers 0.25 to 5 L and 8000 mPa·s; the optional Ø36 reaches 10 L and 10,000 mPa·s, and the Ø18 goes down to 150 mL.
The head goes in 150 mm
The stated working immersion length is 150 mm, on a 350 × 250 × 650 mm floor body with stepless regulation in six steps.
