Balances · Moisture analyzers

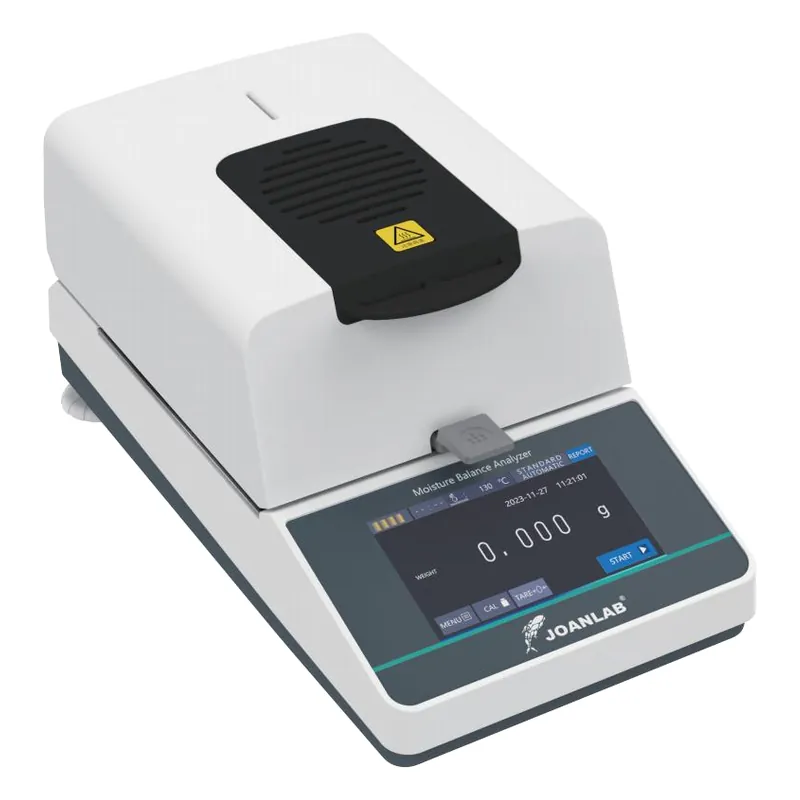

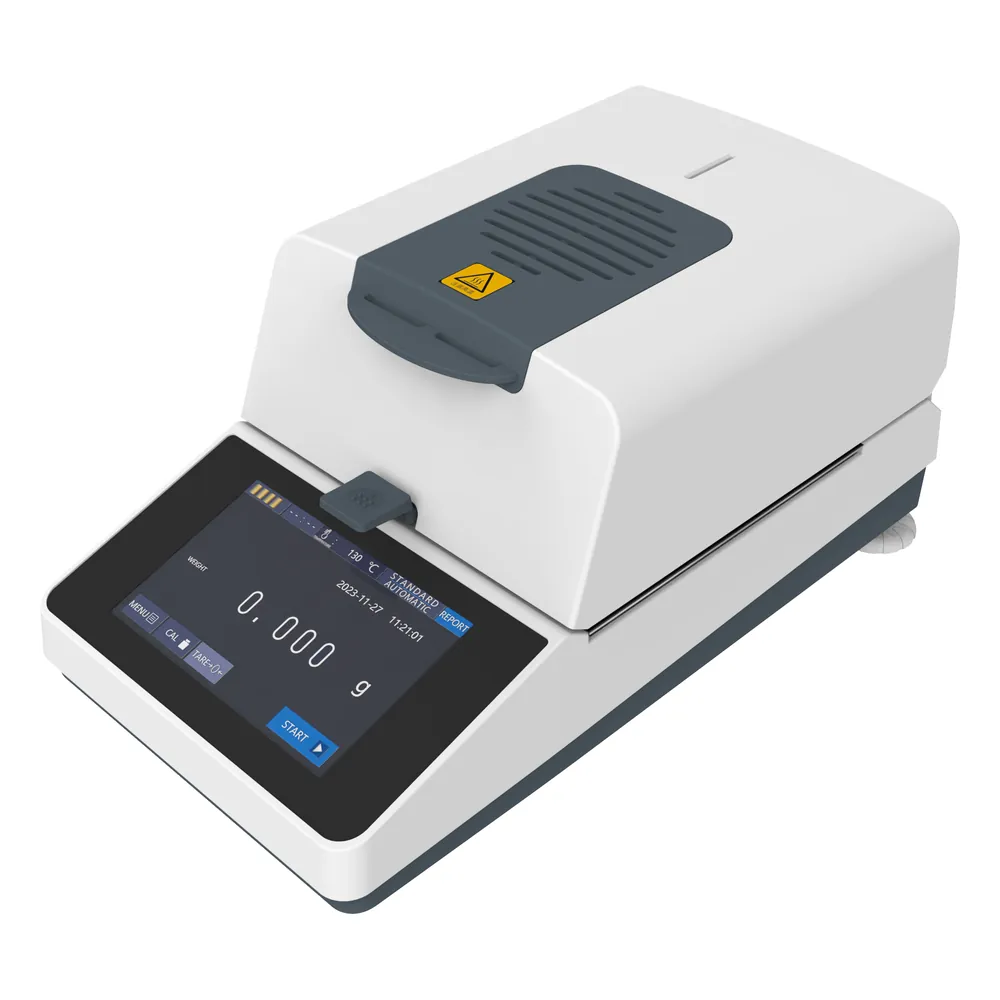

JOANLAB halogen moisture analyzer · MBA series
Halogen-lamp drying moisture analyzers with 110 g capacity, a 5-inch touchscreen and a real-time drying curve.
- 110 g capacity, with readability from 0.01 to 0.001 g
- Halogen lamp heating, from 40 to 160 °C
- 5-inch touchscreen with a real-time dynamic curve
- 20 storable programs
Configurations, certifications, power supply, accessories and availability are confirmed in the quote.
Specifications
Summary datasheet
| Capacity | 110 g |
| Readability | 0.01 g (MBA1102), 0.005 g (MBA1102a), 0.001 g (MBA1103 and MBA1103-HBM) |
| Moisture resolution | 0.1%, 0.05% and 0.01% depending on the model |
| Measuring range | 90-10%, 95-5% and 100-0% depending on the model |
| Temperature range | 40-160 °C, adjustable in 1 °C steps |
| Heat source | Halogen lamp; PT-100-2 probe |
| Weight sensor | Load cell; HBM sensor in the MBA1103-HBM |
| Pan | Ø96 mm, aluminum |
| Storable programs | 20 |
| Ambient operating temperature | 5-35 °C |
| Dimensions | 336 × 185 × 165 mm |
| Power supply | 50 Hz per the price list; voltage to be confirmed for Chile |
| Availability | Imported to order / to be confirmed |
The ladder is the moisture resolution
All four versions share 110 g of capacity, a halogen lamp, a PT-100 probe, drying from 40 to 160 °C and a Ø96 mm pan; what changes is how finely the percentage reads: 0.1% (MBA1102), 0.05% (1102a) or 0.01% (1103 and 1103-HBM), tied to weighing precision of 0.01, 0.005 and 0.001 g.
The reportable range also grows with the version: from 90-10% on the base unit to 100-0% on the 1103s.
The HBM swaps the sensor
The MBA1103-HBM states the same performance as the 1103 and replaces the standard load cell with an HBM sensor. All of them carry two calibration modes and RS232 printing.
