Heating equipment · Glassware dryers

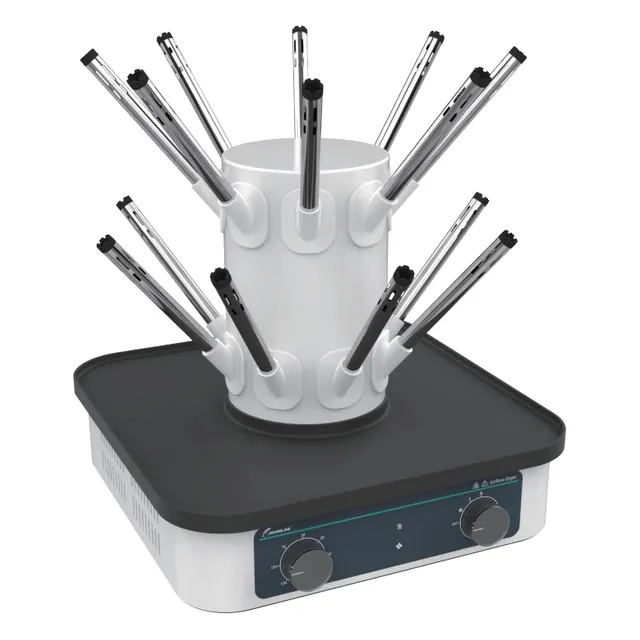

JOANLAB glassware dryer · AD series
Air-flow glassware dryer with 12, 16 or 24 ports, ambient or heated air up to 85 °C and a timer from 0 to 60 minutes.
- Three sizes on the same body: 12, 16 or 24 ports
- Outgoing air between ambient temperature and 85 °C, with overtemperature cutoff
- Two heating levels, 600 and 1000 W, and outlet velocity from 0.2 to 2.5 m/s
- Takes a 1 L Erlenmeyer flask on the AD-12 and the AD-16, and 500 mL on the AD-24
Configurations, certifications, power supply, accessories and availability are confirmed in the quote.
Specifications
Summary datasheet
| Capacity | 12 ports (AD-12), 16 ports (AD-16) or 24 ports (AD-24) |
| Outlet air | Ambient temperature up to 85 °C, with velocity adjustable from 0.2 to 2.5 m/s |
| Largest vessel per port | 1 L Erlenmeyer flask on the AD-12 and the AD-16; 500 mL on the AD-24 |
| Heating power | Two levels on all three models: 600 W on the first and 1000 W on the second |
| Control | Two rotary knobs, one for the timer and one for the heating level. The manufacturer does not list a digital version |
| Timer | 0 to 60 min |
| Thermal protection | Overtemperature cutoff of the heating |
| Dimensions | 405 × 405 × 360 mm on all three models |
| Power supply | AC 220 V; the catalog does not state the frequency. To be confirmed for Chile |
| Air flow rate | Not stated: the manufacturer publishes only the outlet velocity, and we do not convert it ourselves |
| Air filtration | The manufacturer does not state a filter of any kind; to be confirmed with the supplier |
| Shipping package | 45 × 45 × 46 cm; 10.4 kg (AD-12), 10.6 kg (AD-16) and 11 kg (AD-24) |
| Availability | Import to order / to be confirmed |
The choice is pieces against size
The 12- and 16-duct units dry flasks up to 1 L; the 24-duct one takes up to 500 mL. The footprint is the same on all three —405 × 405 × 360 mm—: more ducts cost no bench space, they cost maximum piece size.
Ambient air or up to 85 °C
It blows at 0.2 to 2.5 m/s with two heating levels (600 and 1000 W) up to 85 °C, a 0 to 60 minute timer and automatic cut-off on overtemperature.
