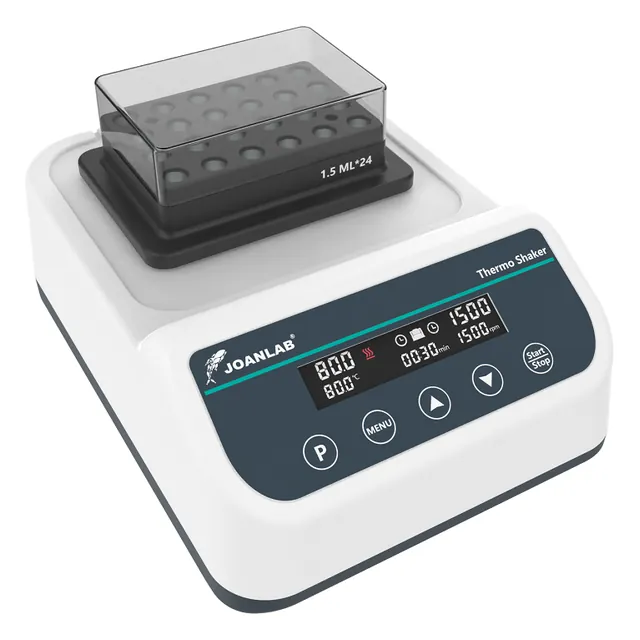

JOANLAB dry block bath · 100Max series — 0.2-50 mL per block, 100 °CThe same chassis with a twenty-four-position 1.5 mL block
Heating equipment · Dry baths

JOANLAB dry block bath · 100Max series

Interchangeable-block dry bath up to 100 °C, in four versions: with or without shaking up to 1500 rpm and with or without below-ambient cooling.

  • Four versions: with or without shaking and with or without cooling
  • Shaking from 100 to 1500 rpm with the 0.2 to 2 mL blocks, and up to 800 rpm with the 15 and 50 mL blocks
  • Interchangeable blocks from 96 × 0.2 mL to 4 × 50 mL, plus a flat block and a cryovial block
  • The tube block is ordered separately and does not come included with the unit
Configurations, certifications, power supply, accessories and availability are confirmed in the quote.
Specifications

Summary datasheet

CapacityOne interchangeable block at a time, from 96 × 0.2 mL to 4 × 50 mL. The block is not included with the unit
TemperatureAmbient to 100 °C; from 15 °C below ambient on the DBSC-100Max and the DBC-100Max
Agitation100 to 1500 rpm with the 0.2 to 2 mL blocks and 100 to 800 rpm with the 15 and 50 mL blocks; only on the DBS-100Max and the DBSC-100Max
Versions without shakingDB-100Max and DBC-100Max. The manufacturer does not state their power, their dimensions or their multi-point operation
Temperature stability±0.5 °C (DBS-100Max and DBSC-100Max)
Heating rate5.5 °C/min (DBS-100Max and DBSC-100Max)
Cooling rate5 °C/min from 100 °C down to ambient temperature and 1 °C/min below it, on the DBSC-100Max; not stated for the DBC-100Max
Timer5 s to 24 h (DBS-100Max and DBSC-100Max)
Program memoryP1 to P9 (DBS-100Max and DBSC-100Max)
Multi-point programmingYes on the DBSC-100Max; no on the DBS-100Max; the manufacturer does not state it for the DB-100Max or the DBC-100Max
Available blocks96 × 0.2 mL, 24 × 0.5 mL, 24 × 1.5 mL, 24 × 2.0 mL, 8 × 15 mL, 4 × 50 mL, flat block for microplates and 24 × 2 mL for cryovials
Thermal lidOptional, compatible only with the 0.2, 0.5, 1.5 and 2.0 mL blocks
Power150 W on the DBS-100Max and the DBSC-100Max; not stated for the versions without shaking
Power supplyAC 100-240 V, 50/60 Hz (DBS-100Max and DBSC-100Max)
Dimensions265 × 190 × 150 mm (DBS-100Max and DBSC-100Max)
AvailabilityImport to order / to be confirmed

Two axes: shaking and cooling

The S shakes and the C cools below ambient; the four combinations make up the family. For the shaking versions the catalog states 100 to 1500 rpm on low modules and 100 to 800 rpm on high ones: the top speed depends on the height of the module mounted. The DBSC-100Max can be set from −5 °C and cools at 1 °C/min below ambient.

The thermal lid goes after condensation

The optional heated lid (DBS-Lid, for modules 1 to 4) keeps the top of the tube warm so that condensate does not form on the wall or the cap during temperature control, as the manufacturer states.

Modules up to PCR format

The modules run from the 0.2 mL tube (including the 96-well PCR plate and 8 × 0.2 mL strips) to the 50 mL conical, plus a flat PCR-bottom plate and a 2 mL cryovial module, with custom modules from the factory (OEM).
